[MUSASHI] Musashi introduce Resin injection system for Optical components
2016.05.18

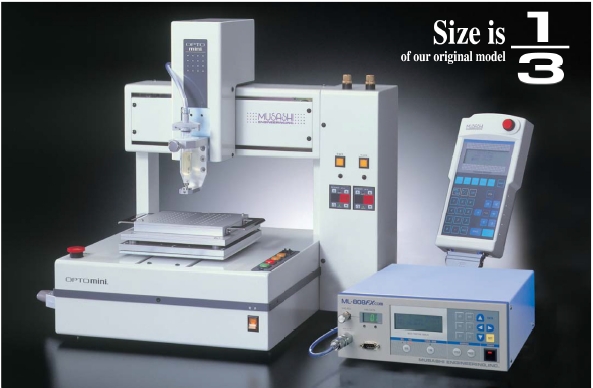

Specialized for Optical Components system
OPTO MINI avivale now!
Optical fiber market is growing up and requirements are getting higher.
The techologies also sophistcated and need precision sysytems.
Musashi had developed specialized system for such optical fiber process.
Specifications
| Model | OPTOnimi |
|---|---|
| Use liquid | Resin and others for ferrule |
| The number of the palette work | The number of 100 (50*2) work is standard palette Specifications The number of other Equipped is allowed by special order, too |
| Dispense head top and bottom stroke | Up to 50mm |
| Dispense head top and bottom speed | 1 - 200mm/sec. |
| Repetition position grain precision | ±0.01mm or less |
| Work-space envelope | The X-axis: 200mm/Y axis: 200mm |
| Speed range | 0.1 - 500mm/sec. |
| Dispensing controller | ML-808FXcom (optional) |
| Program data capacity | 4,000 step 99CH. |
| Program data save | The inside: Backup with built-in RAM |
| The outside: We stop at Software for editing the dispensing pattern MuCAD Backup (optional) to the PC side media |
|
| Power supply, Power consumption | AC100V 50/60Hz, 120VA |
| Exterior dimensions | W388 X D304 X H422mm |
| Weight | 17 kg |
| Optional | ・tichingupendanto, various holders ・Work palette, heating and cooling temperature control system |
